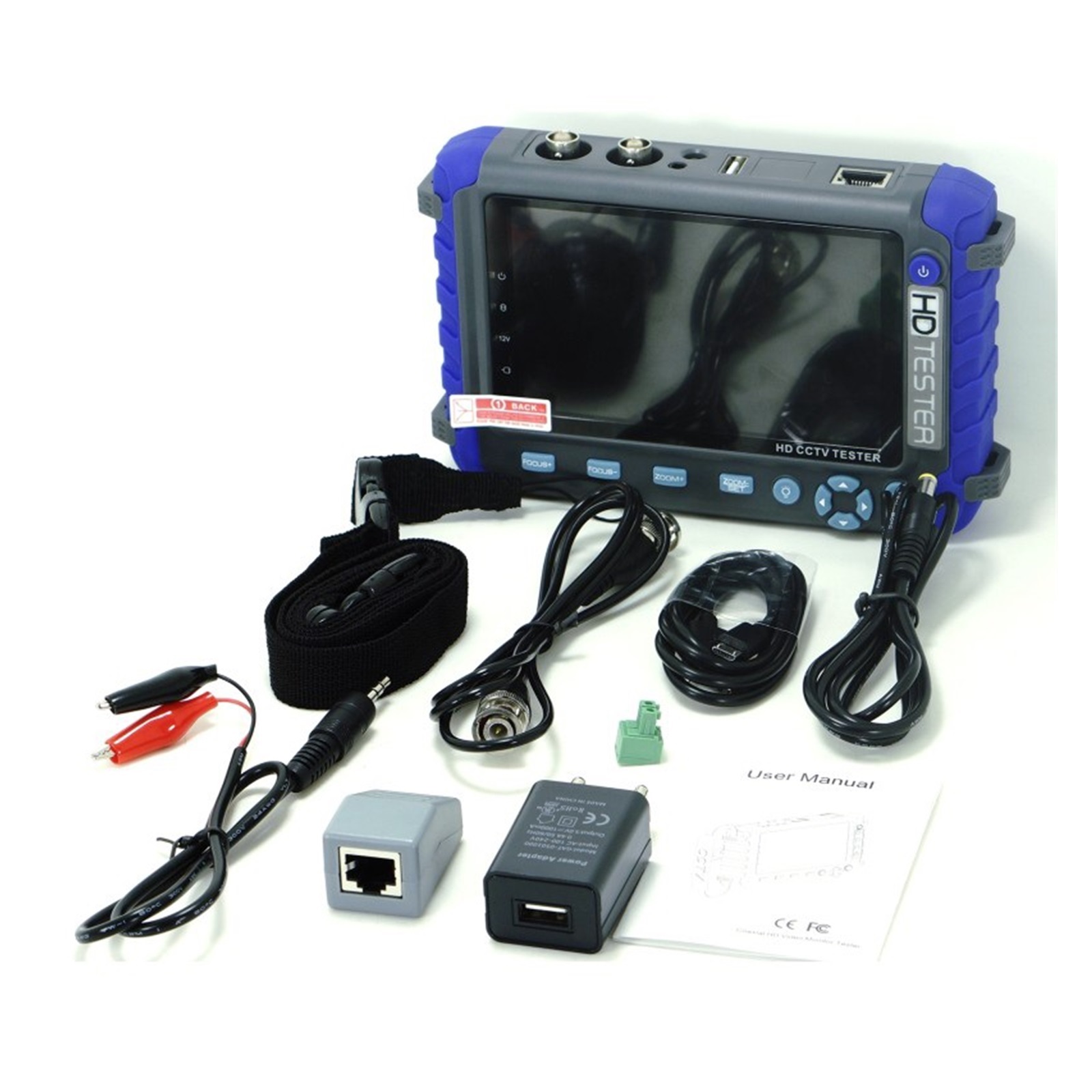

8MP AHD TVI 8MP CVI CVBS IV8C 5" LCD CCTV Tester Monitor Multifunctional Professional Testing Camera Test Tool ,Full Features Tester

<p>Specifications:</p><p>LCD 5.0inchTFT-LCD,800(RGB)x480resolution</p><p>Videotest NTSC/PAL(Autoadapt)</p><p>LCDadjustment Brightness,Contrast,Saturationadjustable</p><p>VideoIN/OUT 1channelBNCInput&amp;1channelBNCOutput</p><p>VGAinput NOT Support</p><p>PTZProtocol CompatiblewithprotocolsPELCODP</p><p></p><p>*Ima nerator</p><p>Multi-format video OUT port ima nerator, sending a variety of standard (e.g. PAL, NTSC) color graphics section</p><p></p><p>*DC12V 1A output power</p><p>Power the camera with DC12V (1A) power from the tester.</p><p></p><p>* testing</p><p>Test the input from pickup devices. Connect the tester and pickup device with the cable.</p><p></p><p>*Improvement cable test</p><p>UTP cable, telephone cable etc order and connectivity test, can save testing report</p><p></p><p>*TVI camera test</p><p>HD TVI video surveillance testing, support1MP 2MP 3MP 4MP 5MP. When TVI signal input, the tester will display HD TVI camera ima. </p><p></p><p>*CVI camera test</p><p>HD CVIvideo surveillance testing, support1MP 2MP 3MP 4MP. When CVI signal input, the tester will display HD CVI camera ima.</p><p></p><p>*AHD camera test</p><p>HD video surveillance testing, support1MP 2MP 3MP 4MP 5MP. When AHD signal input, the tester will display the AHD camera ima.</p><p></p><p>*LED lamp</p><p>It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.</p><p></p><p>CCTV Monitor, CCTV Monitor &amp; Display, Video Surveillance</p><p>Related Products: </p><p>cctv tester,cctv test monitor,ip camera tester,camera tester, </p><p>poe tester,ipc tester,cable tester,camera tester coax,tester para camara,cctv tester monitor,hdmi tester,network tester,4k analog camera,coaxial monitor,cctv spot monitor,cctv monitor tool</p>

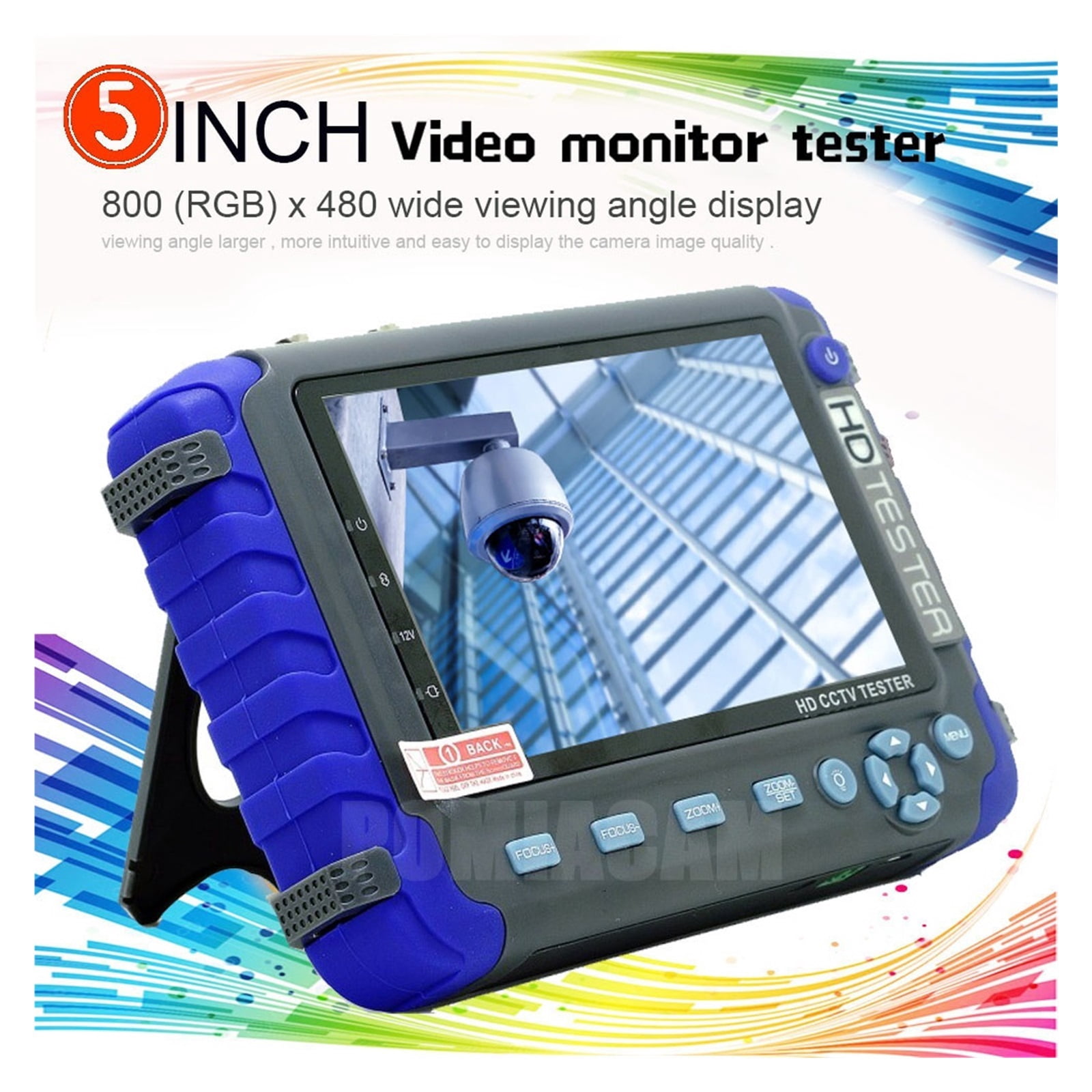

• *Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,
• *Support PAL/NTSC standard video signal. CVBS testing.

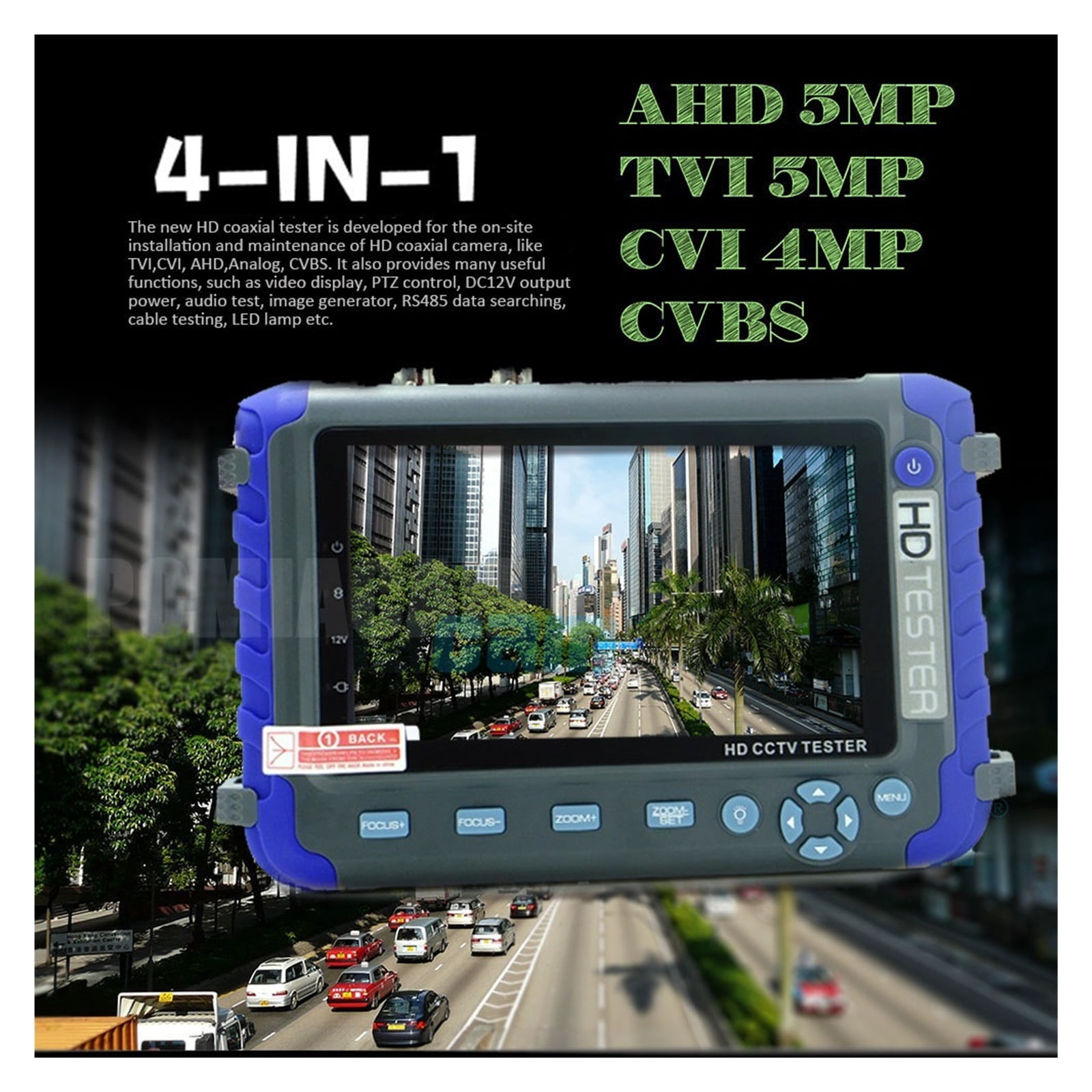

• *The HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, likeTVI,CVI,AHD,Analog, CVBS.
• *It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, ima nerator, RS485 data searching, cable testing, LED lamp etc.
• *Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, , aperture size.
