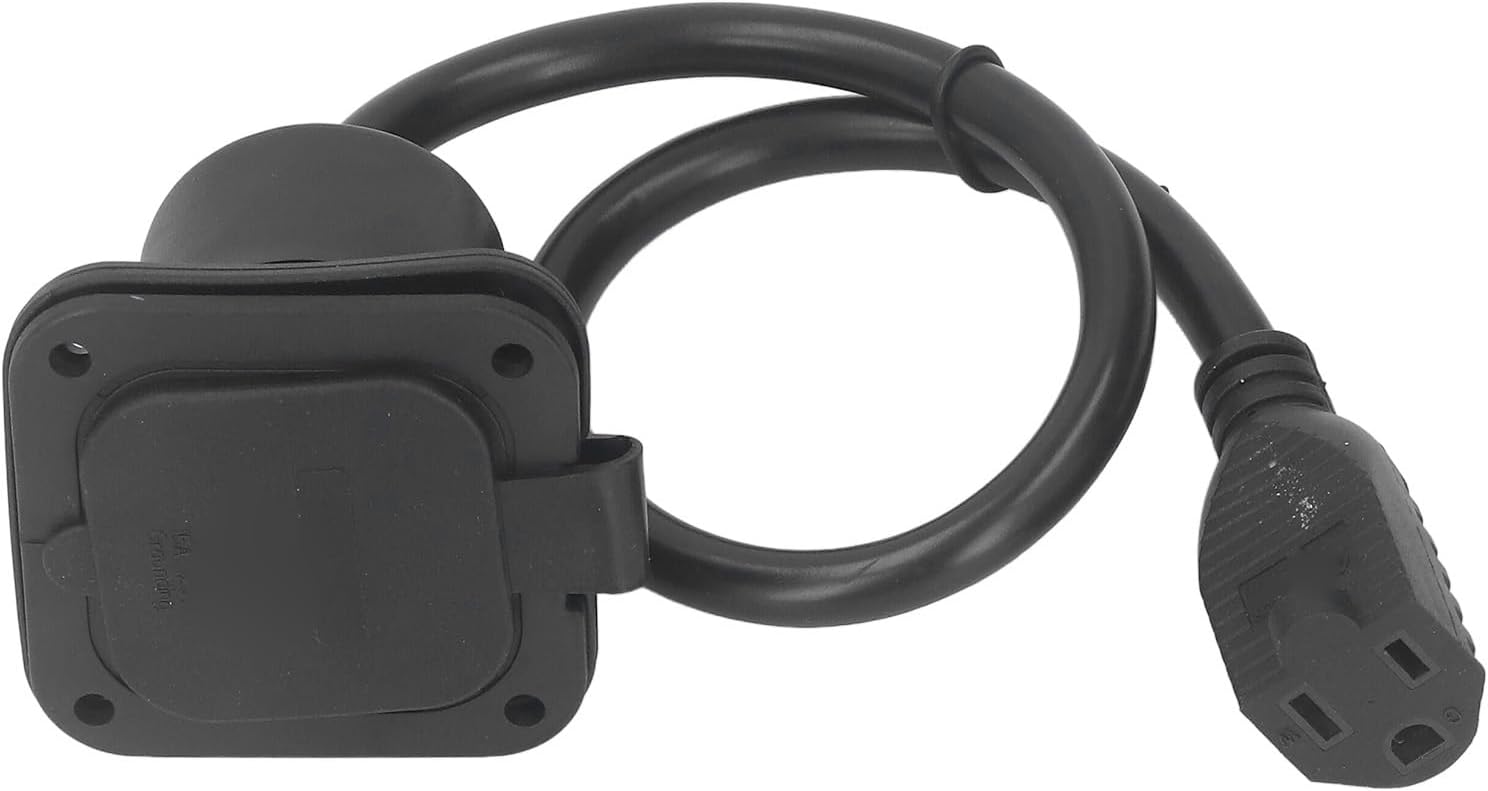

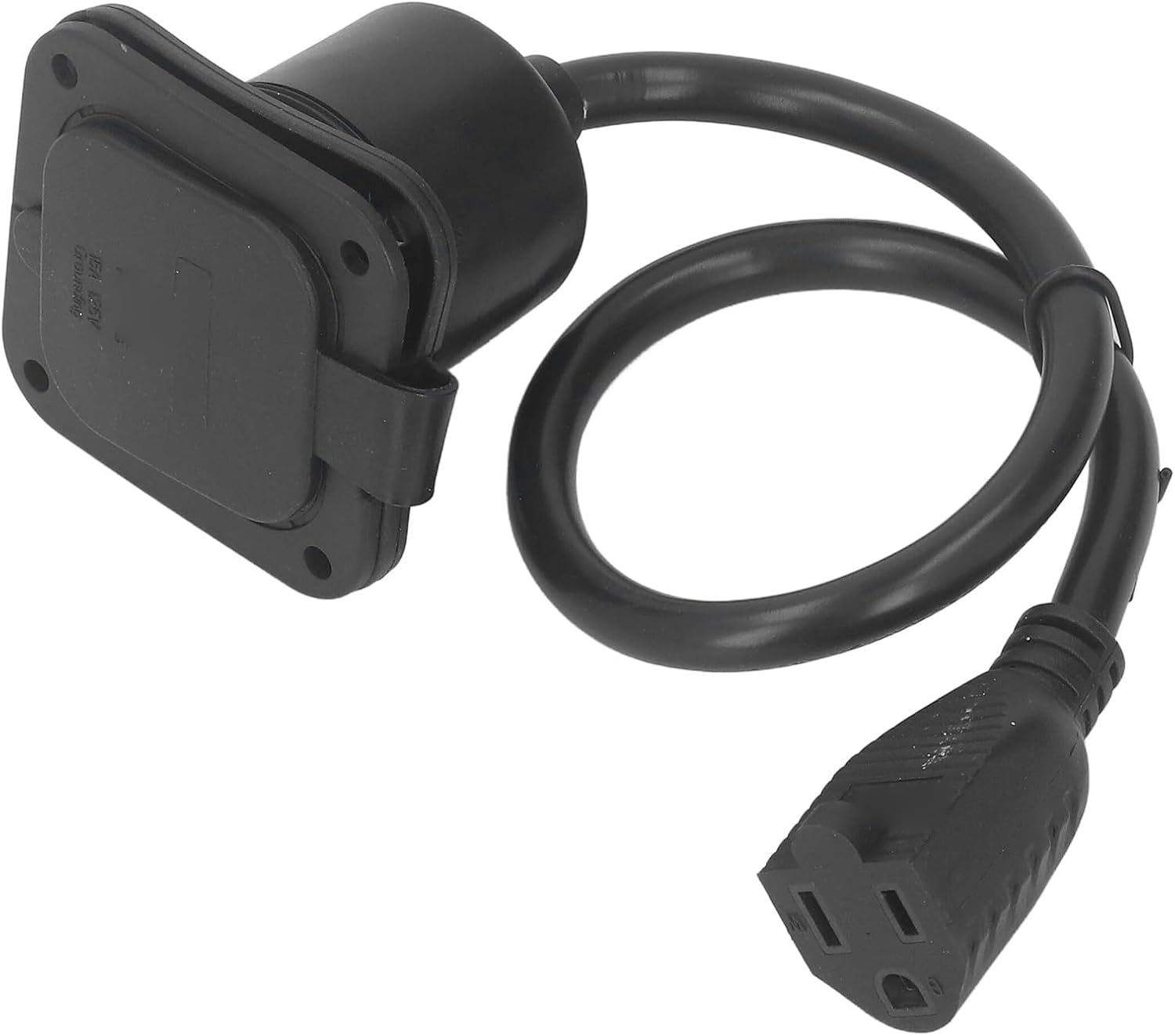

AC Power Inlet Plug 15A 2 Pole 3 Wire NEMA 5-15 RV Flange Inlet with Back Cover and Rubber Housing for RV and Mobile Home Interior Power Systems

Material: RubberNEMA: 5-15PCurrent: 15ASuitable For: for SJT, for SJTO, for SJTOO, for SJTW, for SJTOW, for SJTOOW, for SJE, for SJEO, for SJEOO SJEW, for SJEOW, for SJEOOWMaximum Wire Gauge: 12AWG 3CCable Color Scheme: Black load (125 volts), white neutral wire, green equipment groundingInstallation Instructions:1. Determine the installation position on the hull. Please note that the installation hole position you have chosen should not pass through any wires, pipes, or other obstacles. All electric tools must be properly grounded.2. Mark the installation position and use a hole saw to cut an opening (2 inch diameter hole) on the hull.3. Place the entrance into the opening and align it so that it is at right angles to the hull. Use the entrance as a template and mark the installation hole position with a pencil. Remove the inlet and drill the installation hole using a 1/8 inch drill bit.4. Remove the rear safety cover from the entrance.5. Thread the internal wiring through the hull opening. Note: Use 16 AWG, 14 AWG, or 12 AWG wires. Do not use smaller sized wires as this can cause overheating and may result in electrical fires.6. Thread the wiring through the rear safety housing on the rear housing, and then slide the mounting gasket onto the wiring.7. Loosen the terminal screws on the rear housing of the inlet.9. Slide the rear safety cover onto the back of the entrance.10. Place the gasket and inlet above the hull opening, align the installation holes, and then secure the inlet to the hull with screws.11. Install the inlet using # 8 pan head stainless steel screws.Package List：1 x AC Power Inlet Plug 4 x Screw 1 x Manual

• Electrical Specifications: This AC power inlet plug features a 15A current rating with a 2 pole 3 wire NEMA 5 - 15 configuration for standard electrical connections.
• RV Application: Specifically designed for RV and mobile homes, this flange inlet connects to interior power systems to provide electricity for various equipment.
• Material Properties: Constructed from rubber material for wear resistance, the assembly is built to withstand outdoor use and accumulation.
• Protection: Equipped with a back cover to provide resistance and protect the electrical connection from harsh environmental conditions.
• Standard Fit: Manufactured to standard dimensions to ensure a tight fit and facilitate the replacement of existing or damaged power inlet components.
