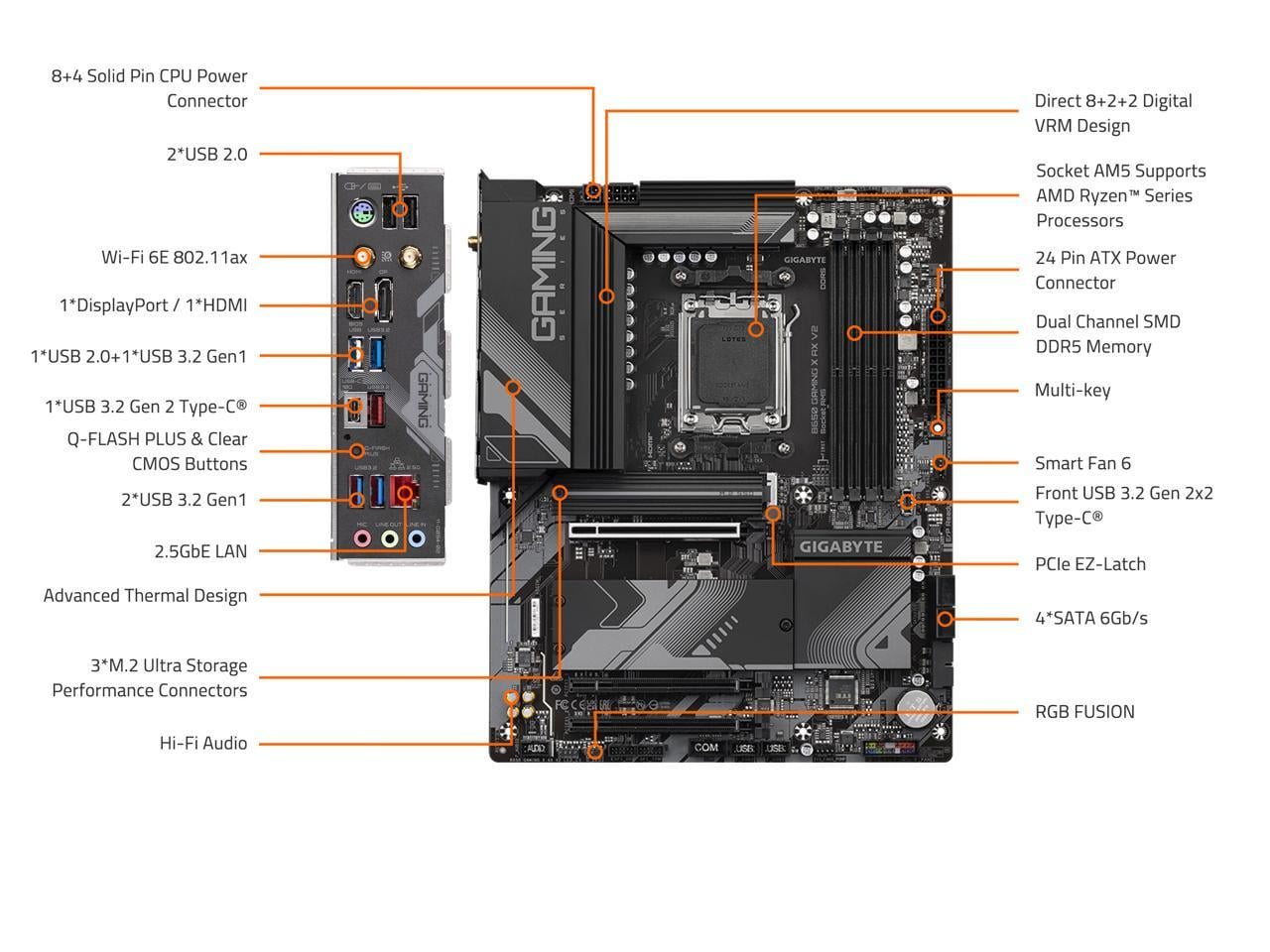

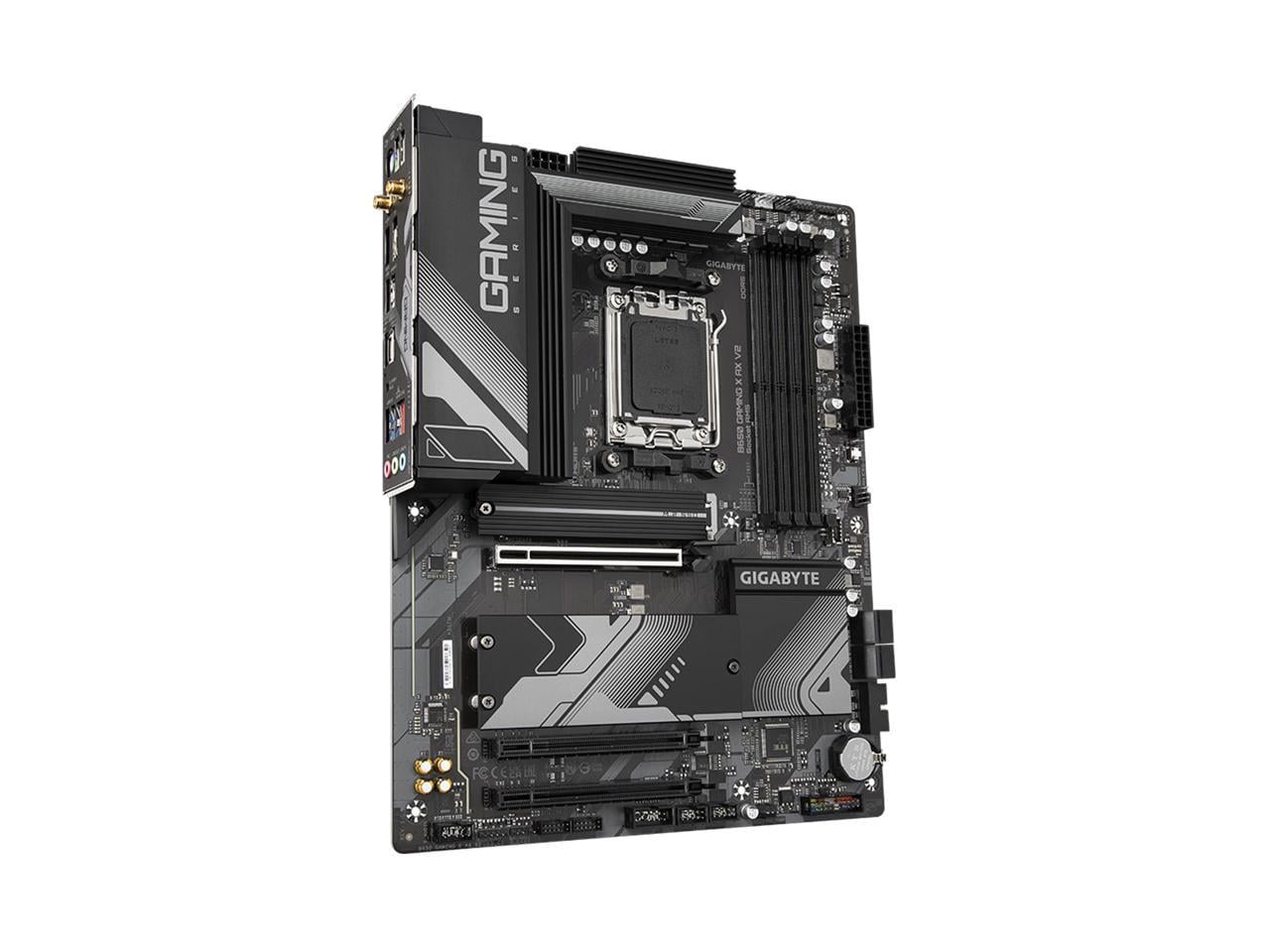

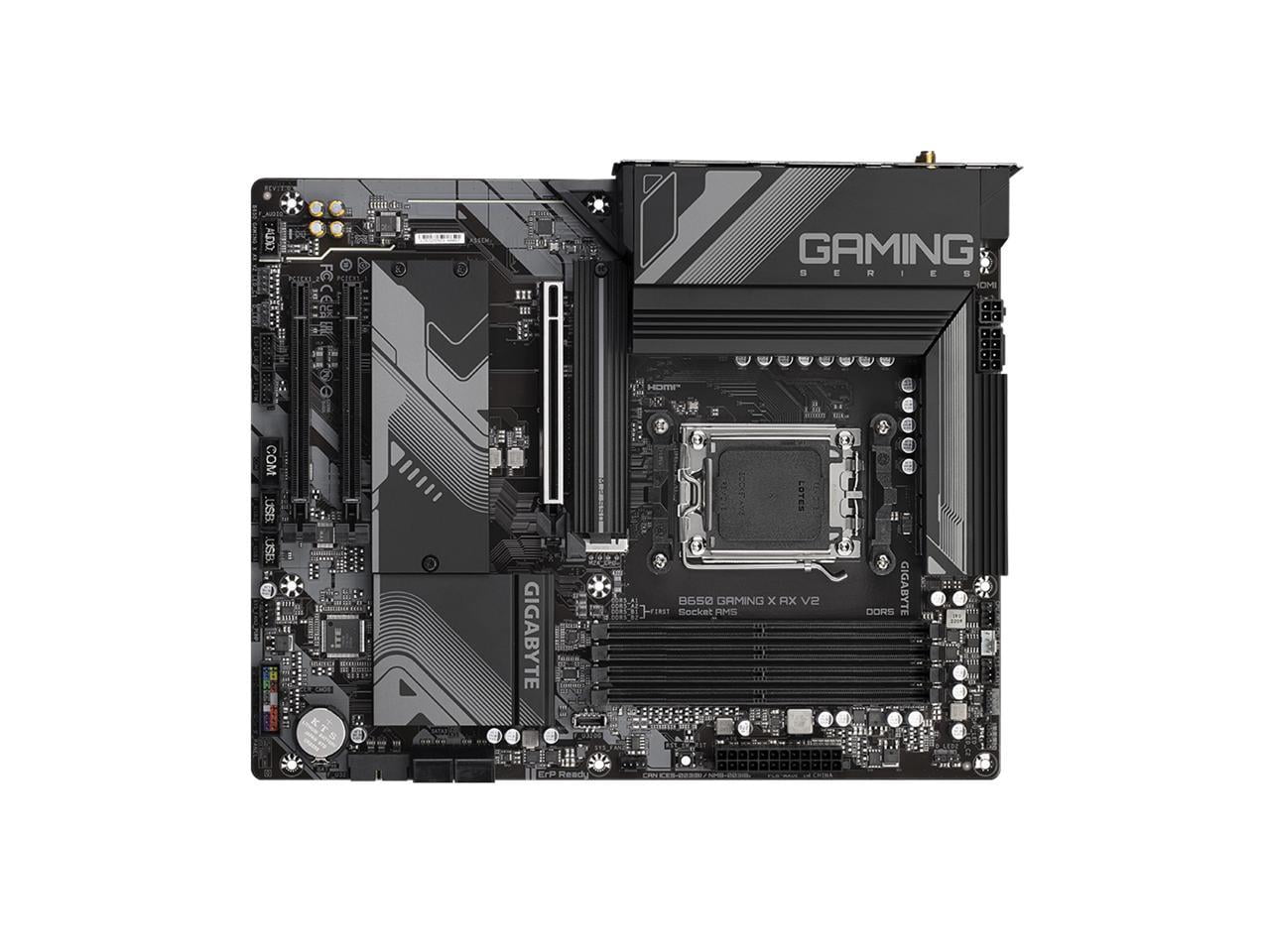

GIGABYTE B650 GAMING X AX V2 AM5 LGA 1718 AMD B650 ATX DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2x2 Type-C, AMD Wi-Fi 6E, Realtek 2.5GbE LAN

<b><u>Processor &amp; Chipset</u><br></b><br><b>Chipset Manufacturer:</b> AMD<br><b>Chipset Model:</b> B650<br><b>Total Processor Supported:</b> 1<br><b>Processor Socket:</b> Socket AM5<br><b>Processor Supported:</b> Ryzen 7<br><br><b><u>Memory</u><br></b><br><b>Number of Memory Slots:</b> 4<br><b>Memory Form Factor:</b> DIMM, UDIMM<br><b>Maximum Memory Supported:</b> 192 GB<br><b>Memory Technology:</b> DDR5 SDRAM<br><b>Memory Speed Supported:</b> 8000 MHz, 7800 MHz, 7600 MHz, 7200 MHz, 7000 MHz, 6800 MHz, 6666 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5600 MHz, 5200 MHz, 4800 MHz, 4400 MHz<br><br><b><u>I/O Controller</u><br></b><br><b>Controller Type:</b> Serial ATA/600<br><b>RAID Supported:</b> Yes<br><b>RAID Levels:</b> 0, 1, 10<br><br><b><u>Video</u><br></b><br><b>Onboard Video:</b> CPU Dependent Video<br><b>Graphics Controller Model:</b> Radeon Graphics<br><br><b><u>Audio</u><br></b><br><b>Audio Channels:</b> 7.1<br><br><b><u>Network &amp; Communication</u><br></b><br><b>Bluetooth:</b> Yes<br><b>Bluetooth Standard:</b> Bluetooth 5.3<br><b>Gigabit Ethernet:</b> Yes<br><b>2.5Gigabit Ethernet:</b> Yes<br><b>Wireless LAN:</b> Yes<br><b>Wireless LAN Standard:</b> IEEE 802.11 a/b/g/n/ac/ax<br><br><b><u>I/O Expansions</u><br></b><br><b>Total Number of Expansion Slots:</b> 3<br><b>PCI Express Standard:</b> PCI Express 4.0, PCI Express 3.0<br><b>Total Number of PCI Express Slots:</b> 3<br><b>Number of PCI Express x1 Slots:</b> 2<br><b>Number of PCI Express x16 Slots:</b> 1<br><br><b><u>Interfaces/Ports</u><br></b><br><b>Total Number of USB Ports:</b> 8<br><b>Number of USB 2.0 Ports:</b> 3<br><b>Number of USB 3.2 Gen 1 Ports:</b> 3<br><b>Number of USB 3.2 Gen 2 Type-A Ports:</b> 1<br><b>Number of USB 3.2 Gen 2 Type-C Ports:</b> 1<br><b>HDMI:</b> Yes<br><b>HDMI Version:</b> 2.1<br><b>DisplayPort:</b> Yes<br><b>Number of Network (RJ-45) Ports:</b> 1<br><br><b><u>Onboard Interfaces</u><br></b><br><b>Number of SATA Interfaces:</b> 4<br><b>Number of M.2 Interfaces:</b> 3<br><b>Total Number of Onboard USB Ports:</b> 7<br><b>Number of Onboard USB 2.0 Ports:</b> 4<br><br><b><u>Physical Characteristics</u><br></b><br><b>Form Factor:</b> ATX<br><b>Width:</b> 12"<br><b>Depth:</b> 9.6"

• Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
• DDR5 SDRAM slot for convenient installation of memory
• Supported 0 RAID levels provide data reliability and fault tolerance
• Supports AMD Radeon Graphics controller to ensure amazing graphics output
• Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax wireless standard support
• DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
• Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
• With 3 USB 2.0 ports, transfer several documents without error
