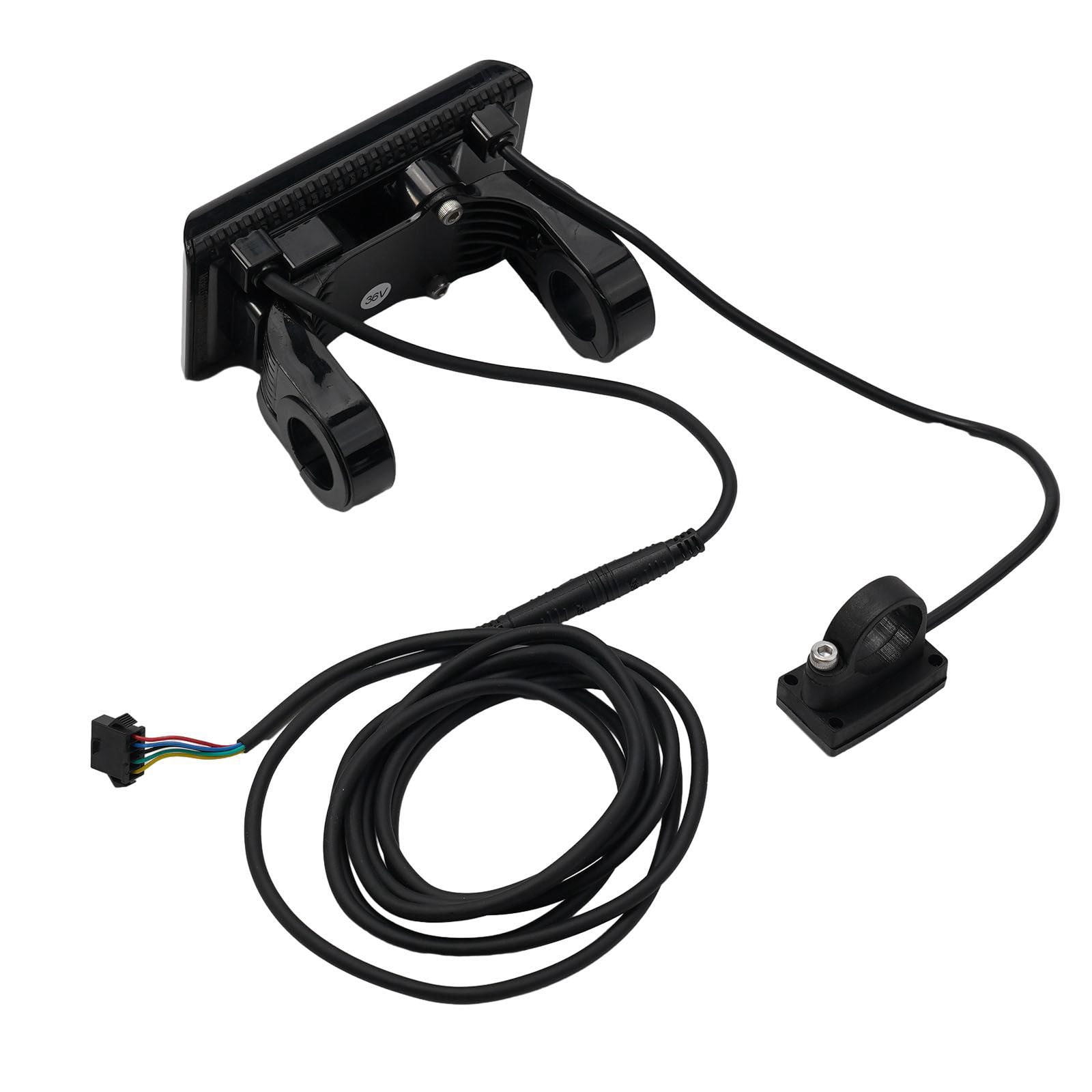

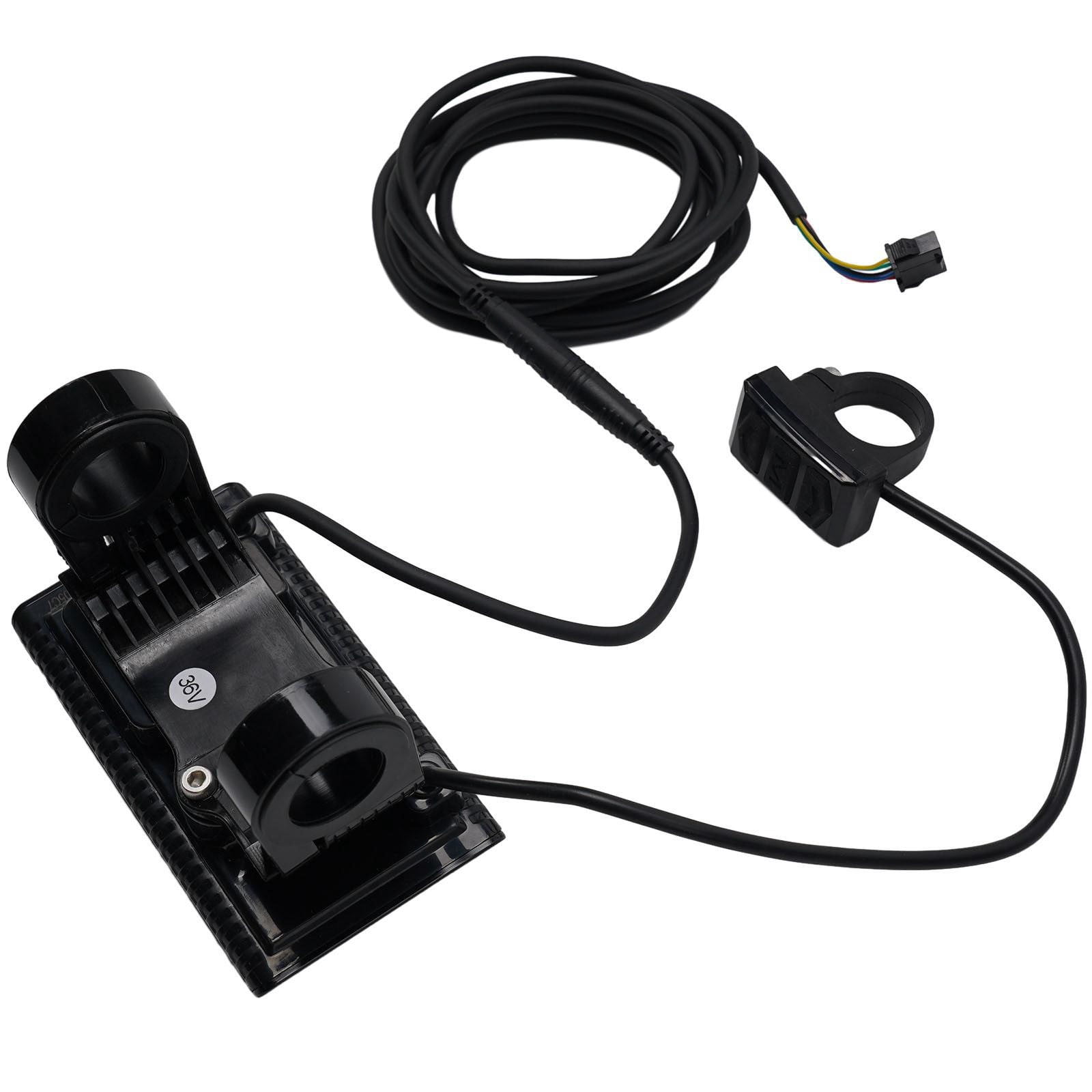

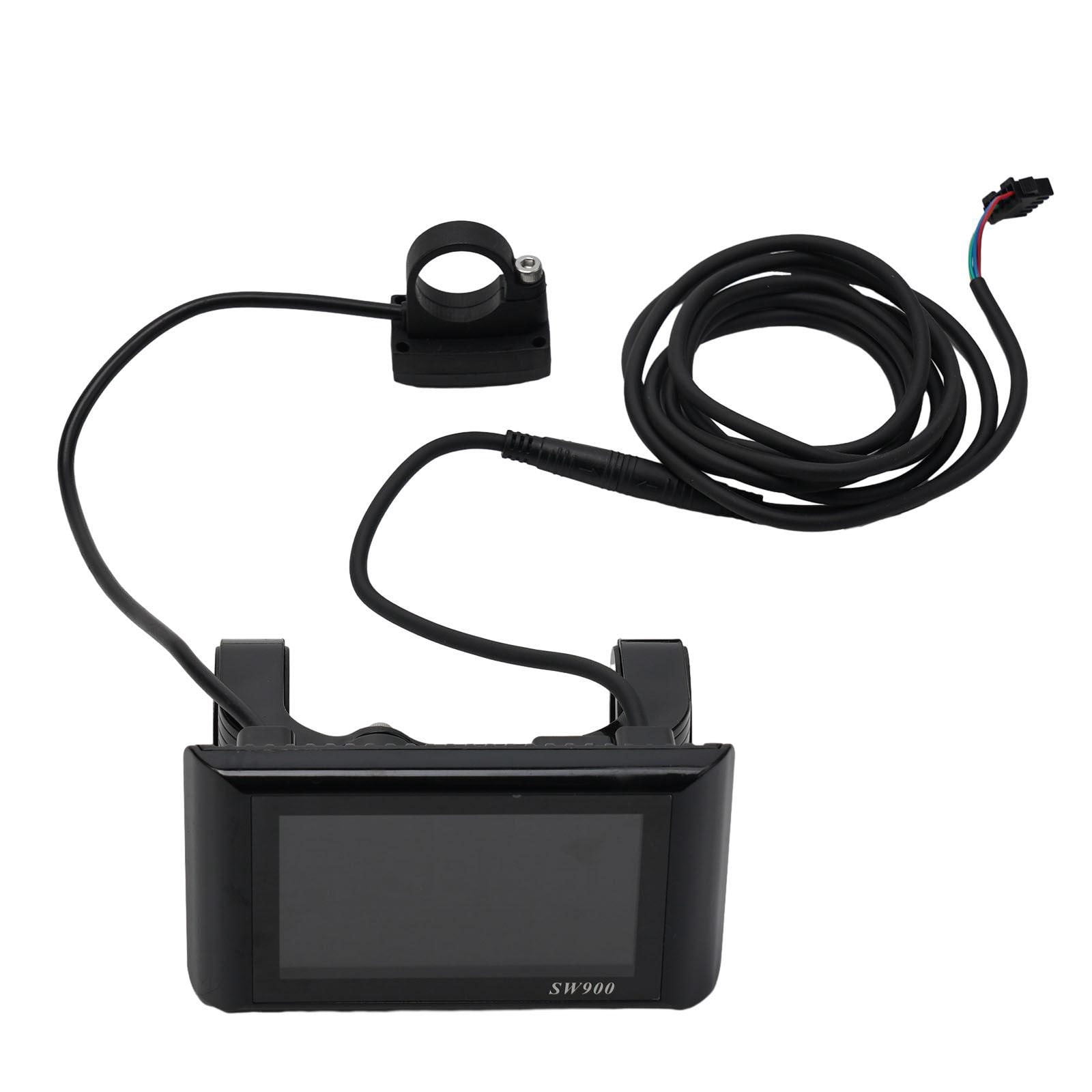

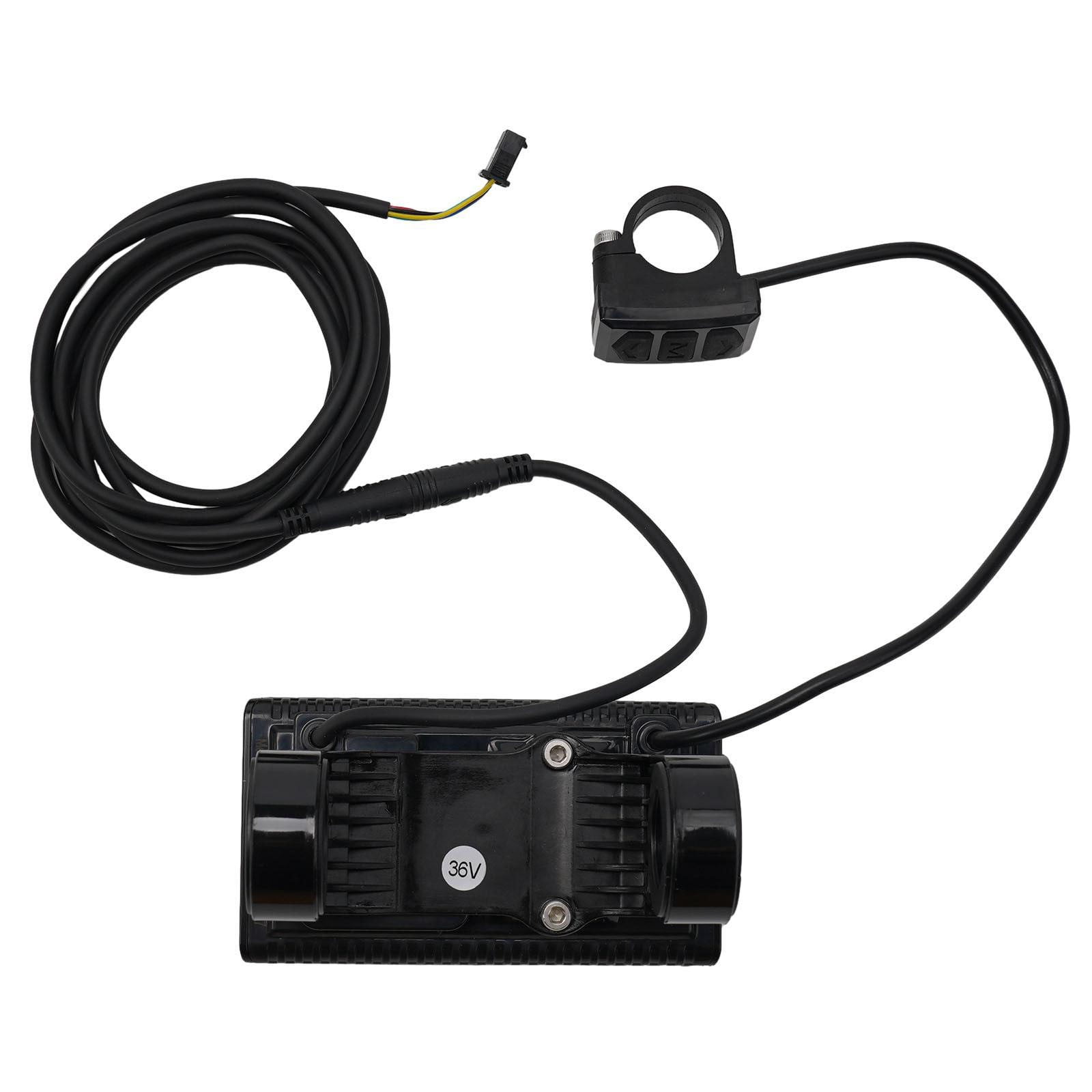

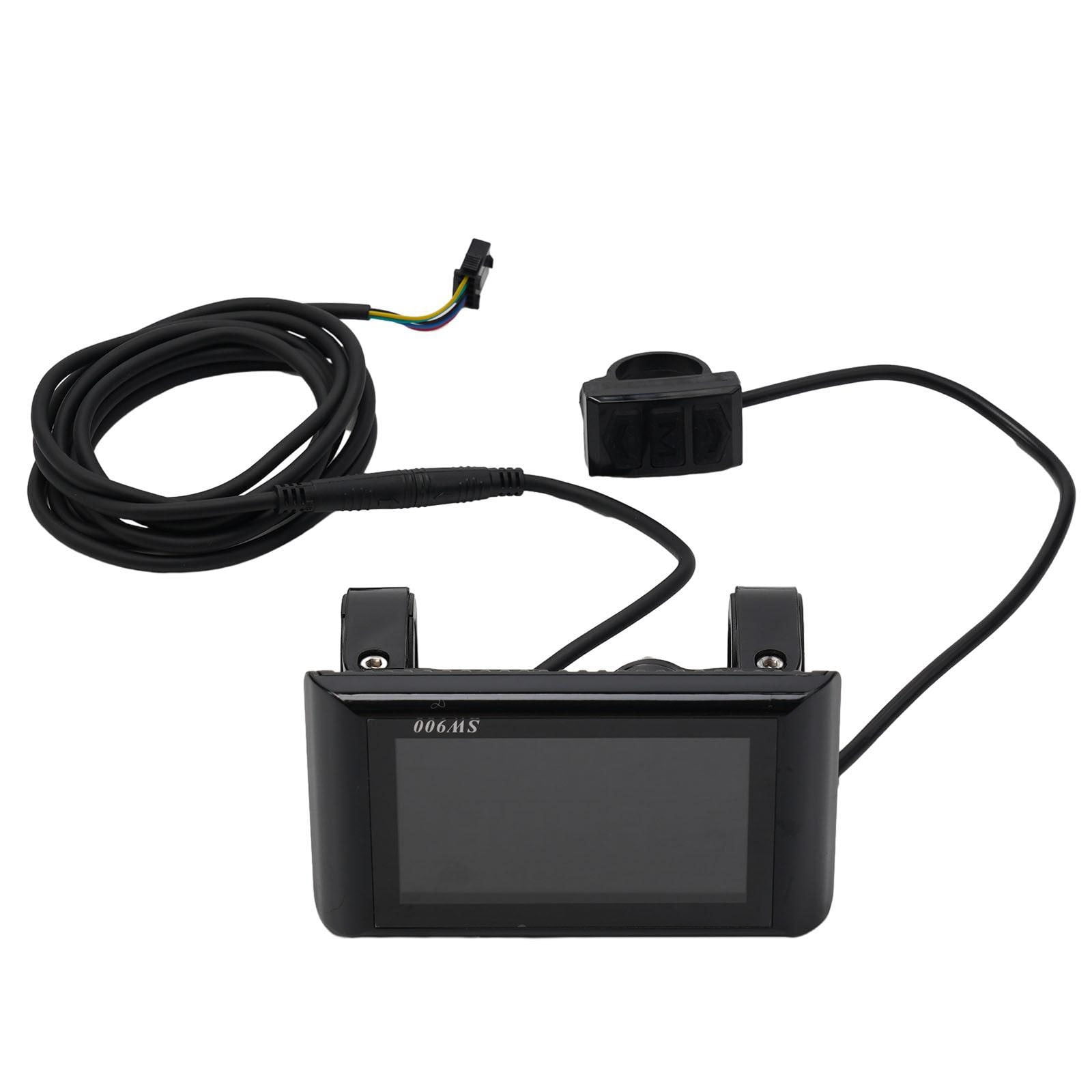

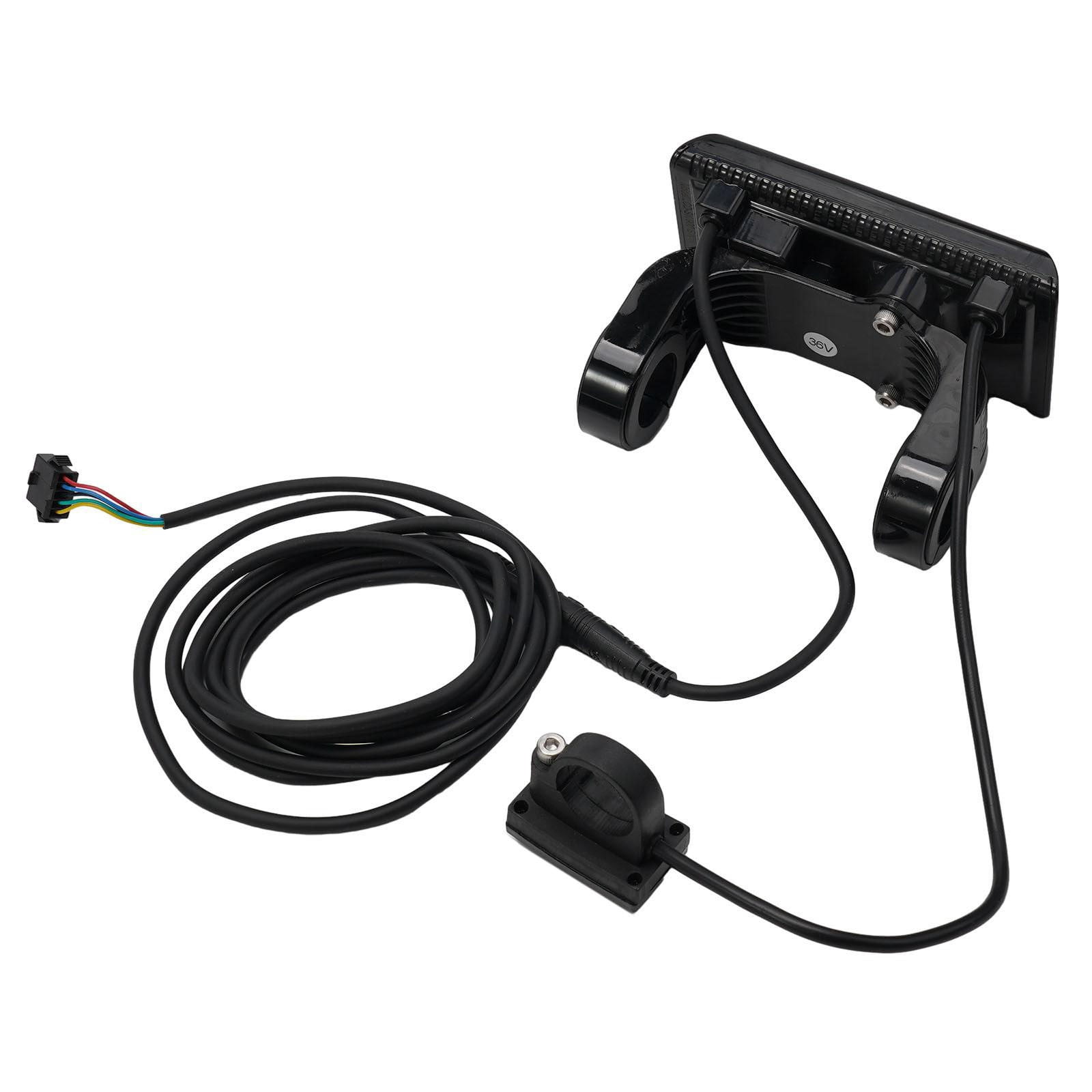

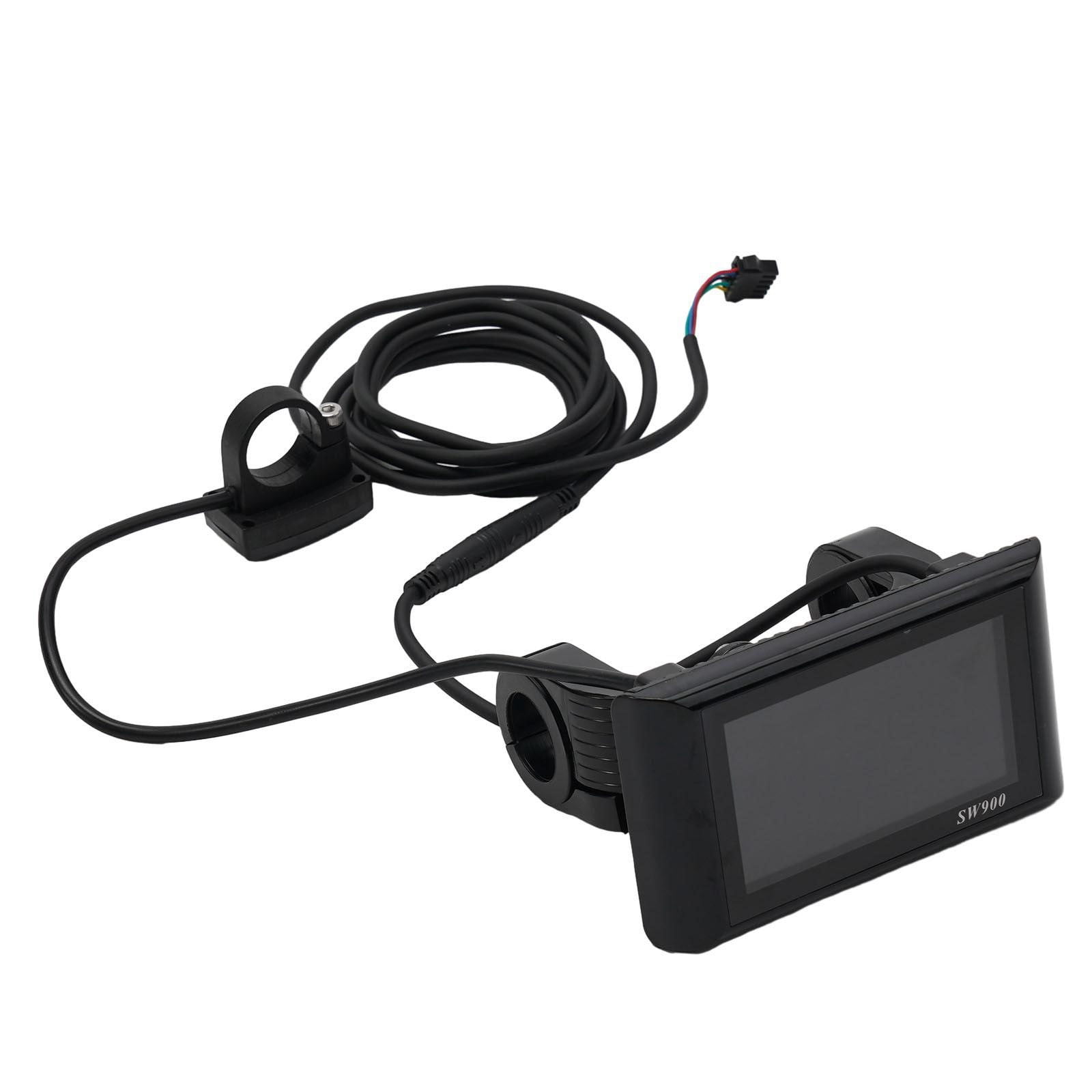

Sportact Cycling,Bicycle Accessories,Electric Bicycle,E-bike SW900 LCD Colorful Display Control Panel 24-60V Electric Bicycle Scooter,Bicycle Accessories for Adult Bikes

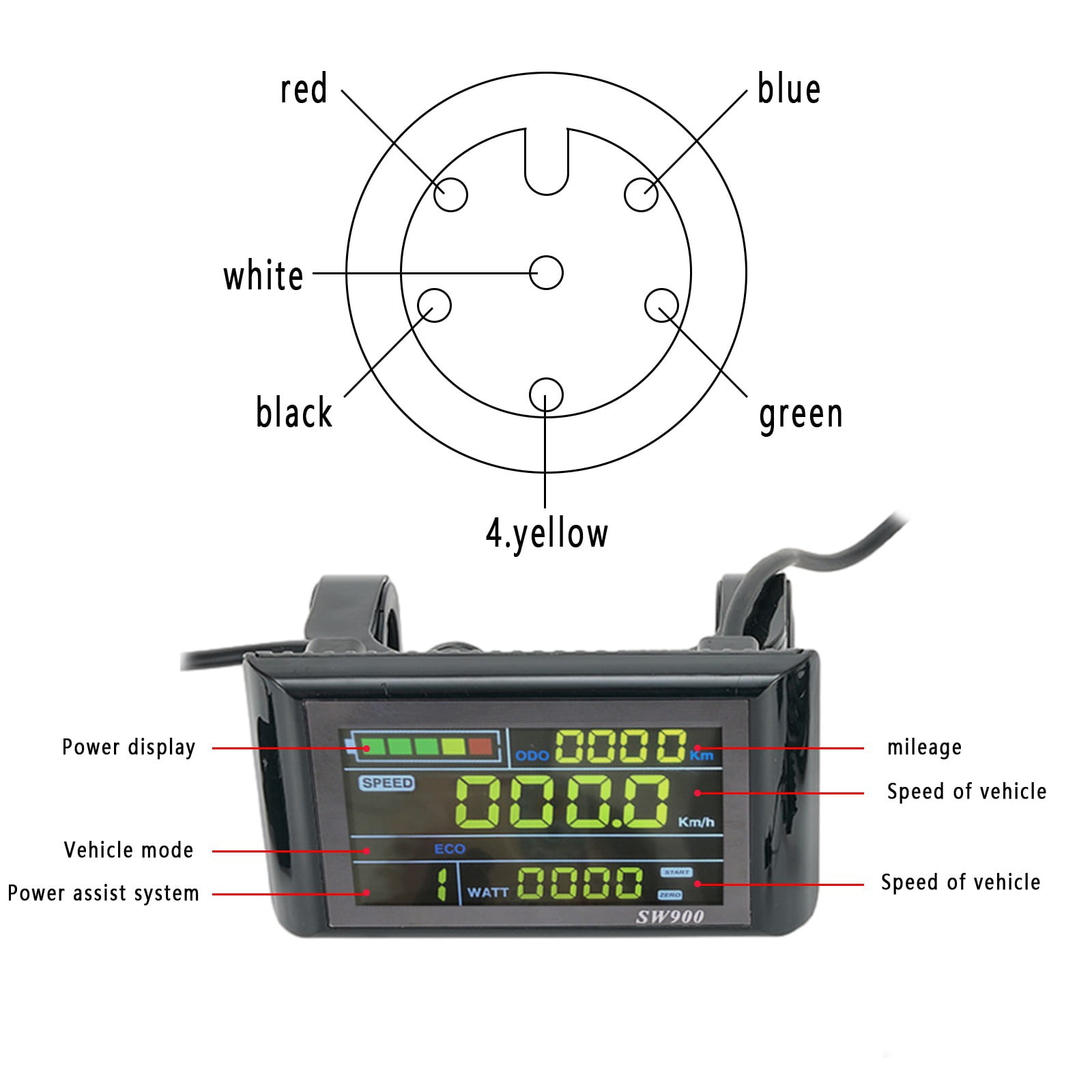

<p><strong>Description:</strong></p><p>1. Brand new and high quality</p><p>2. Made of high quality material, and practical to use</p><p>3. Can be automatically identified and compatible 36V and 48V Voltage.</p><p>4. It will show the true reflection of the battery charge, real time recording of the power consumption to for ensure riding mileage.</p><p>5. The individual joints are clearly set up to help with cost-effective installation.</p><p>6. When connected to a bicycle, this product will display a lot of useful data on your bike, such as riding speed, time, power and temperature.</p><p>7. The color display on the meter makes it easier for you to see the data on the panel.</p><p>8. Agreement 2</p><p><br></p><p><strong>Instrument setting function</strong></p><p>Long press the up button and down button of the meter to enter the meter settings.</p><p>P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest.</p><p>P02: mileage unit, 0: KM; 1: MILE.</p><p>P03: Voltage level: 24V, 36V, 48V</p><p>P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit is minute.</p><p>PO5: PAS level: 0, 3-level mode: 1-level 2V, 2-level 3V, 3-level 4V1, 5-level mode: 1-level 2V, 2-level 2.5V, 3-level 3V, 4-level 3.5V, 5-level 4V</p><p>P06: wheel diameter: unit, inch; accuracy: 0.1.</p><p>P07: Number of speed measuring magnets: range: 1-100.</p><p>P08: Speed limit. Range: 0-50km/h, 50 means unlimited. No communication state (controlled by the meter): When the actual speed exceeds the speed we set, the meter will turn off the for PWM output; when it is lower than the speed we set, the meter will automatically turn on the for PWM output, and the driving speed is ±1km/h ; (Speed limit applies to PAS, not accelerator) Communication status (controlled by controller): The driving speed is consistent with the speed we set. Random error: ±1km/h. (Speed limits apply to PAS and Throttle) Note: These figures are based on KM. When changing KM to Mile, the speed value on the screen will automatically convert to the correct Miles, but if you don't change the speed limit setting from KM to Mile, it will be different from the actual speed limit in Mile.</p><p>P09: for Zero start, non-for Zero start setting, 0: for Zero start; 1: non-for Zero start.</p><p>P10: Driving mode setting 0: Power-assisted driving (turning handle is invalid). 1: Electric drive (driven by turning the handle, at this time the power-assisted gear is invalid). 2: Power-assisted drive and electric drive coexist at the same time.</p><p>P11: Assist sensitivity setting Range: 1-24.</p><p>P12: Power boost start strength setting Range: 0-5.</p><p>P13: The type of power-assisted magnets is set to 5, 8, and 12 magnets, among which 5 and 8 are single Hall power sensors, and 12 is used for dual Hall power sensors.</p><p>P14: Current limit of the controller. The current is 12A. Range: 1-20A</p><p>P15: There is no such function.</p><p>P16: ODO reset setting Long press the up button for 5 seconds ODO reset</p><p>P17: 0: cruise not allowed, 1: cruise allowed; auto cruise optional (only valid for protocol 2)</p><p>P18: Display speed scale range: 50%~150%,</p><p>P19:0 enable 0:0,1:0</p><p>P20: 0: 2 protocol 1: 5 S protocol 2: backup 3: backup</p><p><br></p><p><strong>Specification:</strong></p><p>Material: ABS</p><p>Color: Black (As Pictures Show)</p><p>Weight: About 225g&nbsp;</p><p>Model: 5pin/6pin</p><p>Voltage: 24-60V</p><p><br></p><p><strong>Package Includes:</strong></p><p>1 x Bike LCD Display</p><p>1 x Adapter cable</p><p><br></p><p><strong>Note:</strong></p><p>1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.</p><p>2. Please allow slight manual measurement deviation for the data</p><p><br></p>

• 【Colorful Display Control Panel】The SW900 LCD display control panel for electric bicycles and scooters features a colorful screen that shows various useful data, such as riding speed, time, power, and temperature. The color display makes it easier to read the information on the panel.
• 【Compatible with Different Voltages】This control panel can automatically identify and be compatible with 36V and 48V voltages, versatile usage on different electric bikes and scooters.
• 【Accurate Battery Reflection】The control panel accurately reflects the battery charge and provides real-time recording of power consumption, allowing riders to monitor their riding mileage effectively.
• 【Easy and Cost-effective Installation】The individual joints of the control panel are clearly set up, making installation convenient and cost-effective.
• 【Versatile Settings】The control panel offers various settings, including backlight brightness, mileage unit, voltage level, for sleep time, PAS level, wheel diameter, number of speed measuring magnets, and speed limit, allowing riders to customize their riding experience.
