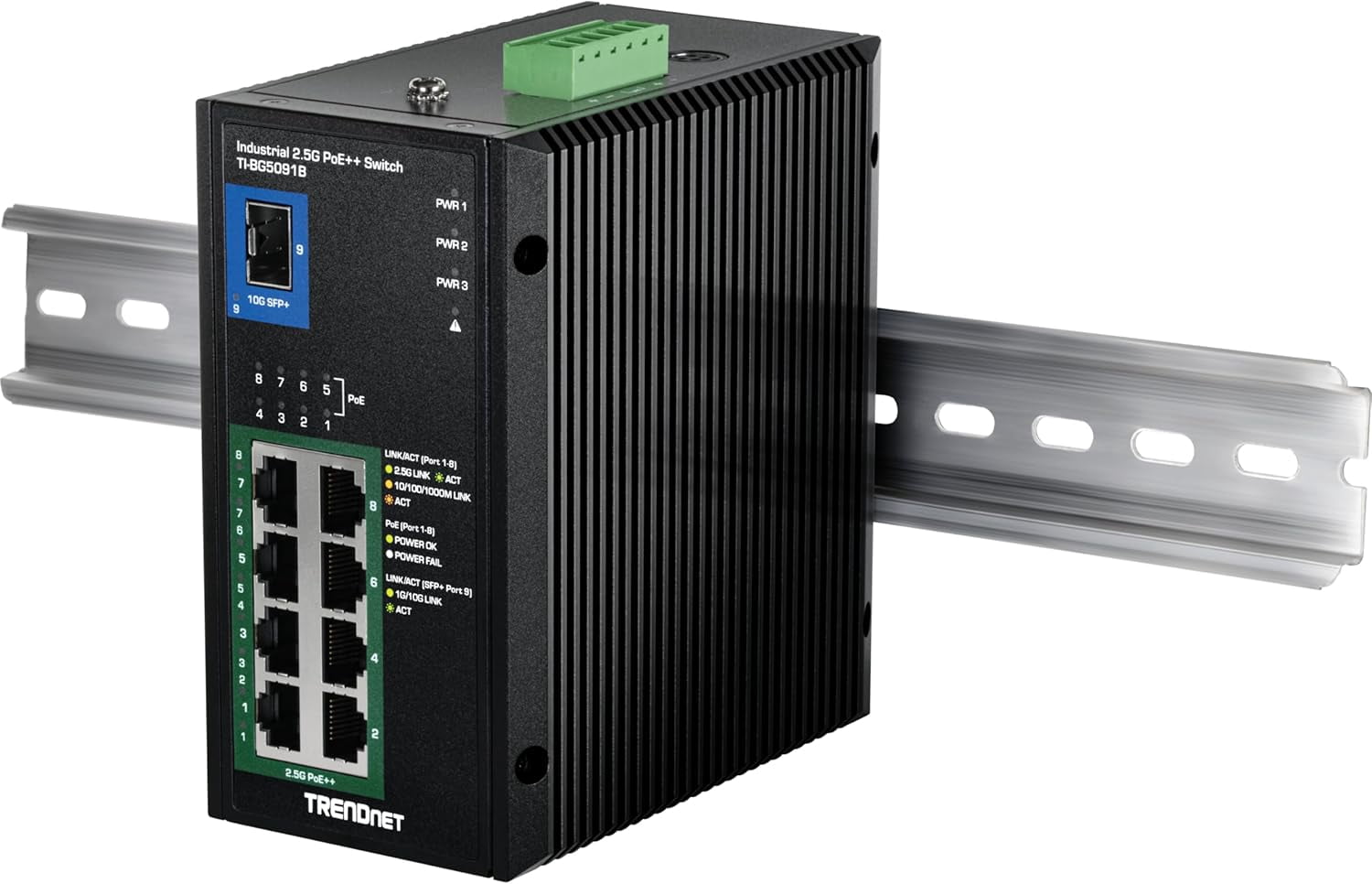

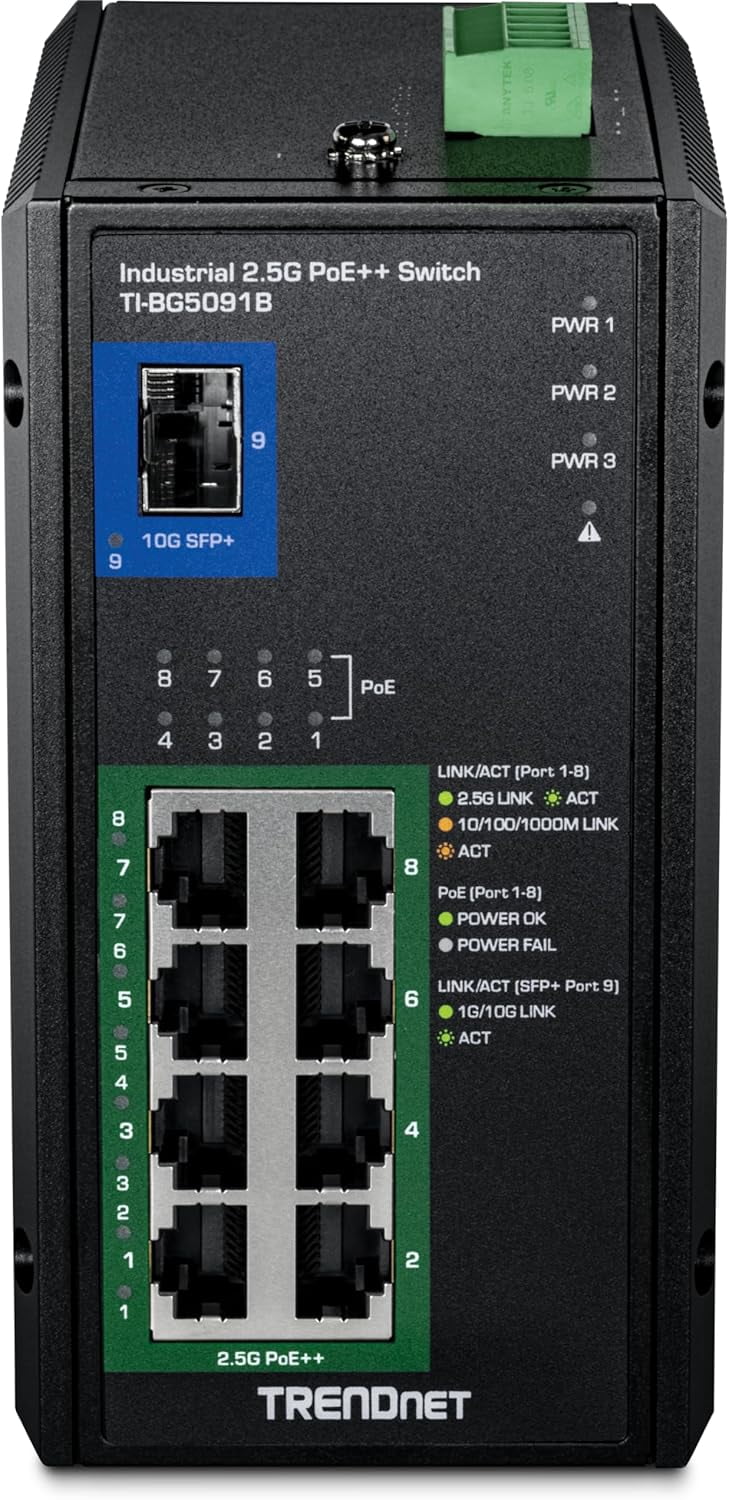

TRENDnet TI-BG5091B, 9-Port Industrial 2.5G DIN-Rail PoE++ Switch with 10G SFP+ Port (24 – 57V)
Product details
| Management number | 238407857 | Release Date | 2026/07/11 | List Price | US$144.00 | Model Number | 238407857 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

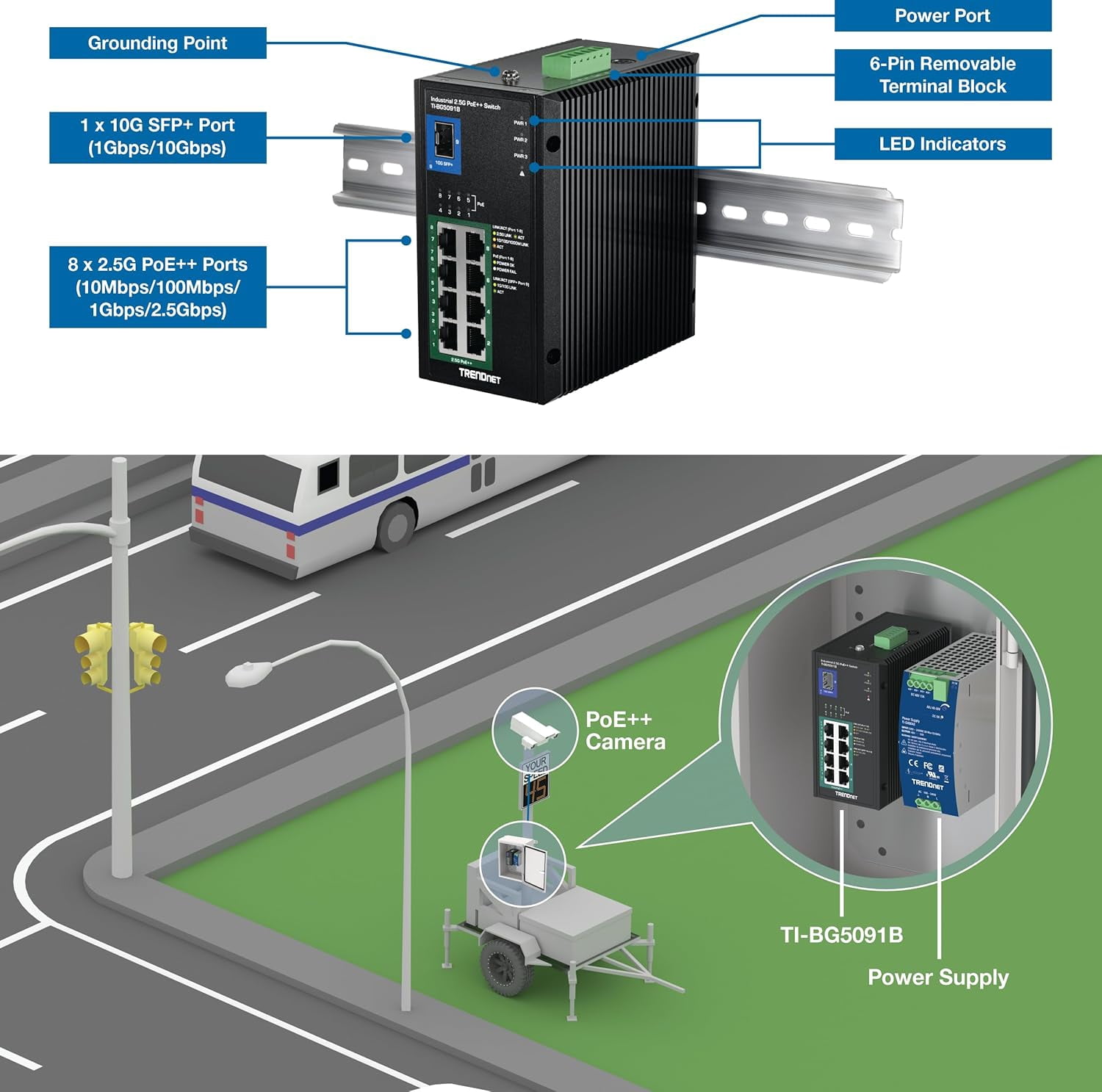

TRENDnet's 9-Port Industrial 2.5G DIN-Rail PoE++ Switch with 10G SFP+ Port (24 – 57V), model TI-BG5091B, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial variable voltage switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). This adjustable voltage switch features eight 2.5G PoE++ ports, and a 10G SFP+ port for long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's voltage booster PoE++ switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial variable voltage switch, users only need one cable to deliver both data and power. The switch also
- 8 x 2.5G PoE++ ports
- 1 x 10G SFP+ port
- Up to 480W PoE power budget
- 60Gbps switching capacity
- Hardened IP50 rated metal switch
- Fast PoE minimizes wait time for powering up PoE devices

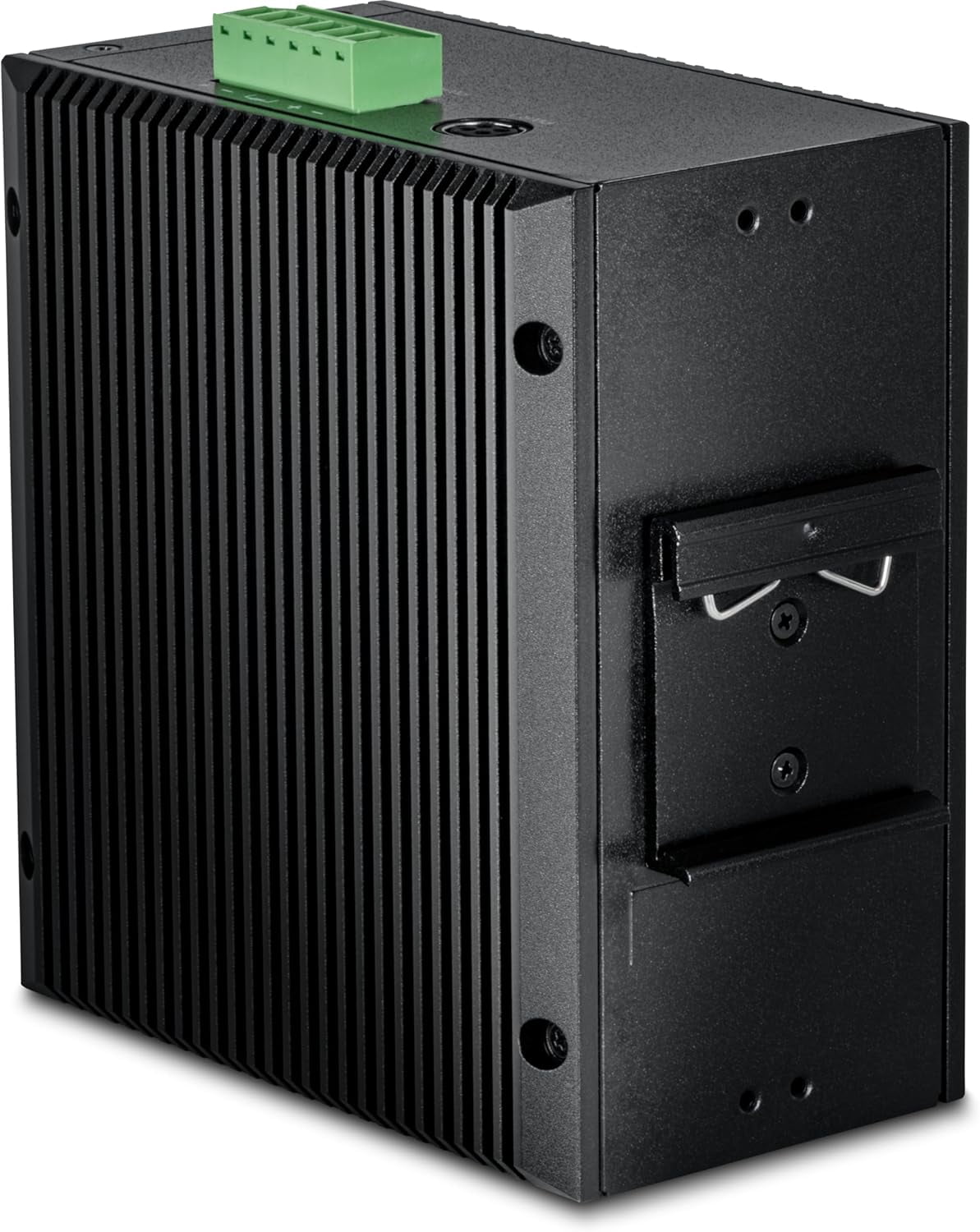

- Includes DIN-Rail and wall mounts
- Extreme operating temperature range of -40° – 75° C (-40° – 167° F)

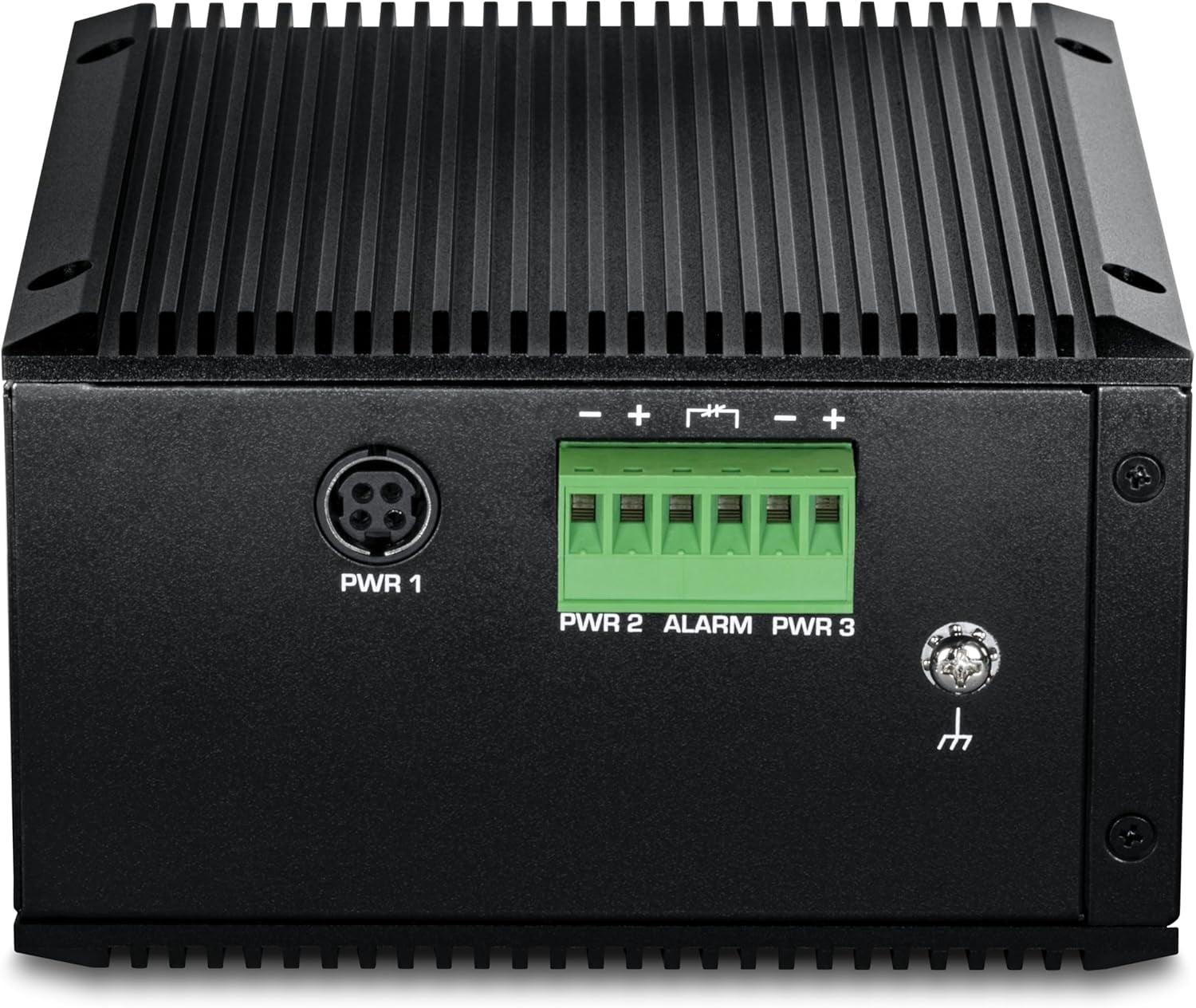

- Multiple power inputs for redundancy
- Alarm output triggered by power failure
- Power supply sold separately (TI-S48048, TI-S24052, 48VDC3000)
- Lifetime Warranty
| Brand | TRENDnet |
|---|---|
| Network switch type | POE Switch, Unmanaged Switch, Ethernet Switch |
| Number of ports | 9 |
| Transfer rate | 60 Gbps |
| Number of layers | L2 |
| Form factor | Wall Mount |
| Model name | TI-BG5091B |
| LAN ports | 9 |
| Inputs/Outputs | Inputs - RJ-45 |
| Accessories | • TI-BG5091B • Removable terminal block • DIN-Rail and wall mount kit |
| Dimensions | 5.30 x 4.88 x 2.87 in |
| Weight | 3 lb |
| Has nrtl listing certification | N |
