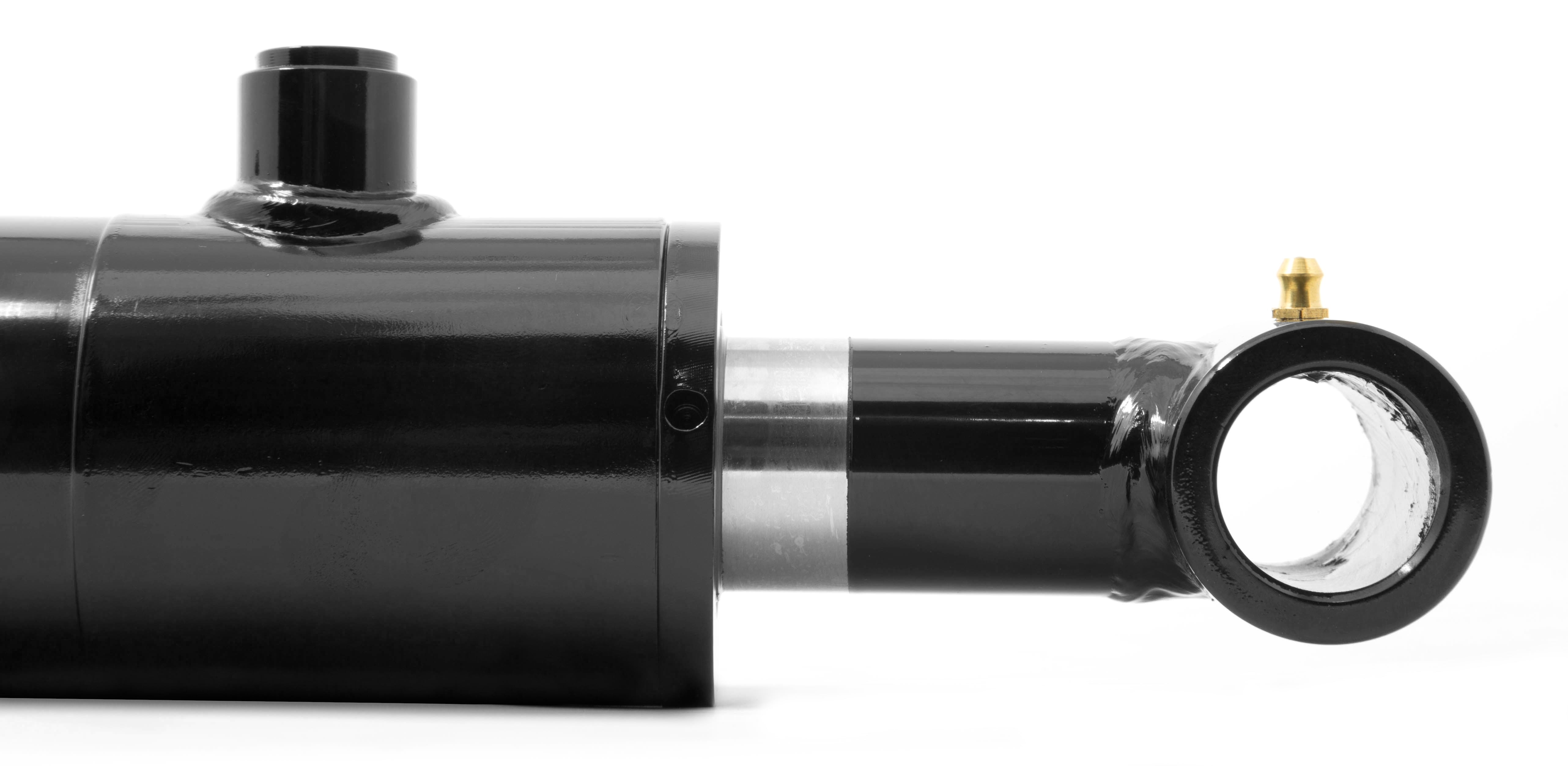

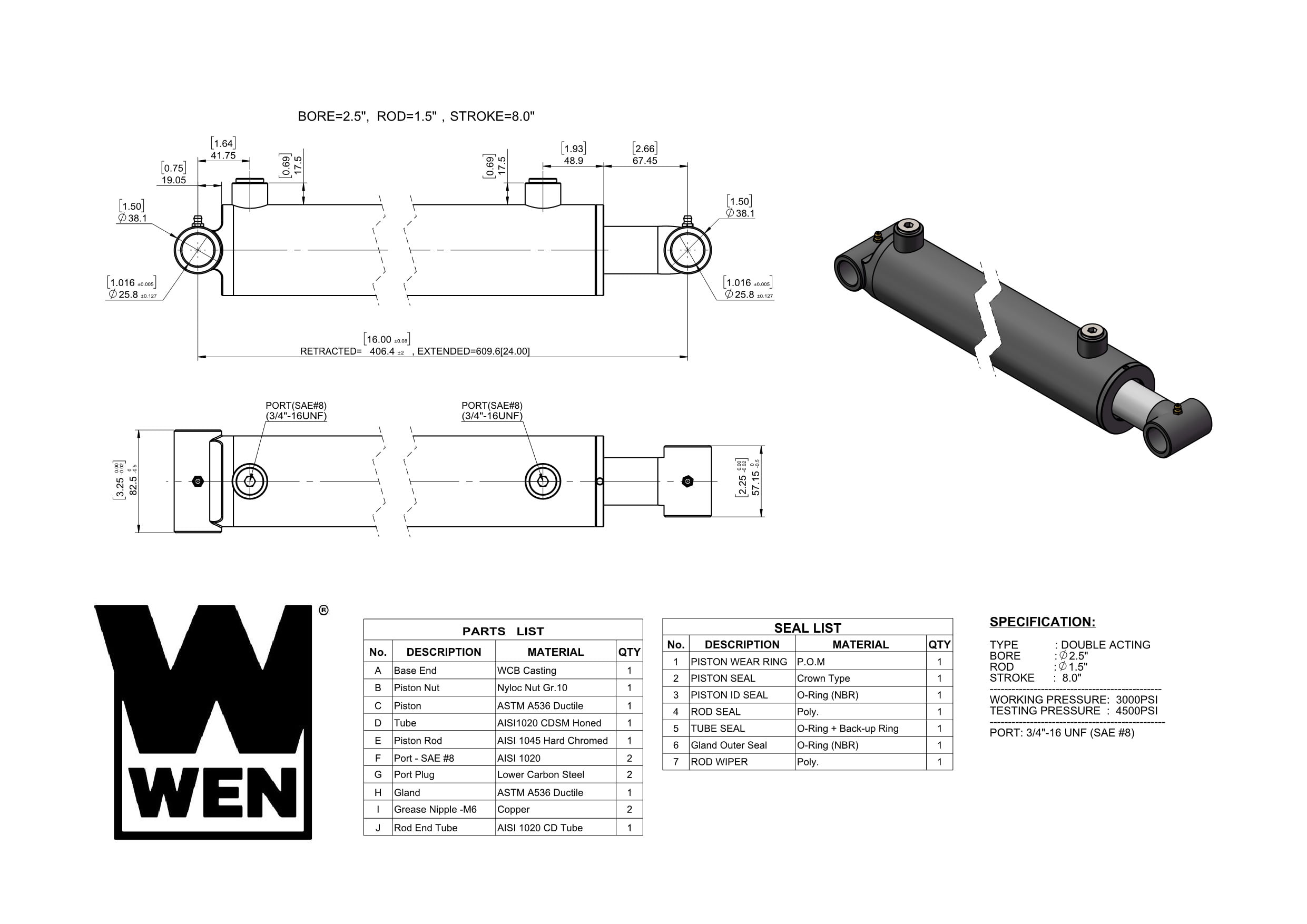

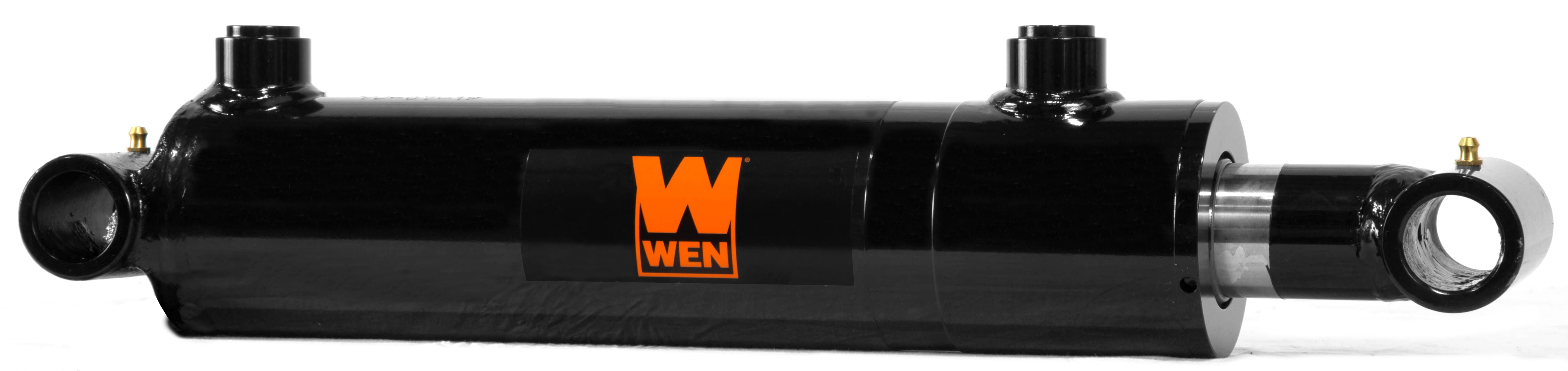

WEN Cross Tube Hydraulic Cylinder with 2.5-inch Bore and 8-inch Stroke

Remember when you had a cylinder that lasted? Maximize reliability in agriculture, construction, manufacturing, machinery, and more with a WEN Hydraulic Cylinder. This double-acting cross tube hydraulic cylinder withstands operating pressures of up to 3000 PSI. The SAE-8 port (3/4 inch-16UNF) attaches easily to the hydraulic hose of your choice. With a 2.5-inch bore and a 8-inch stroke, this durable cylinder goes from a retracted length of 16 inches all the way out to an extended length of 24 inches. This cylinder also includes a reinforced O-ring tube seal, a cold-drawn tube to maximize seal life, a 1.5-inch diameter zinc-plated steel pin, a high-tensile ground and polished chrome-plated rod, and an ASTM A536 65-45-12 ductile iron piston. And because it’s a WEN product, your cylinder comes backed by a two-year warranty and a friendly customer help line, all to make sure you remember WEN.

• Double-acting steel-welded design creates pressure up to 3000 PSI
• Features a 2.5-inch bore, a 8-inch stroke, and a 1.5-inch rod diameter
• SAE-8 port (3/4 inch-16UNF) connects easily to your hydraulic hose
• Retracted 16-inch cylinder extends out to 24 inches in length
• Includes a 1.5-inch zinc-plated steel pin, a polished chrome-plated rod, and a two-year warranty
